Baze BZ02

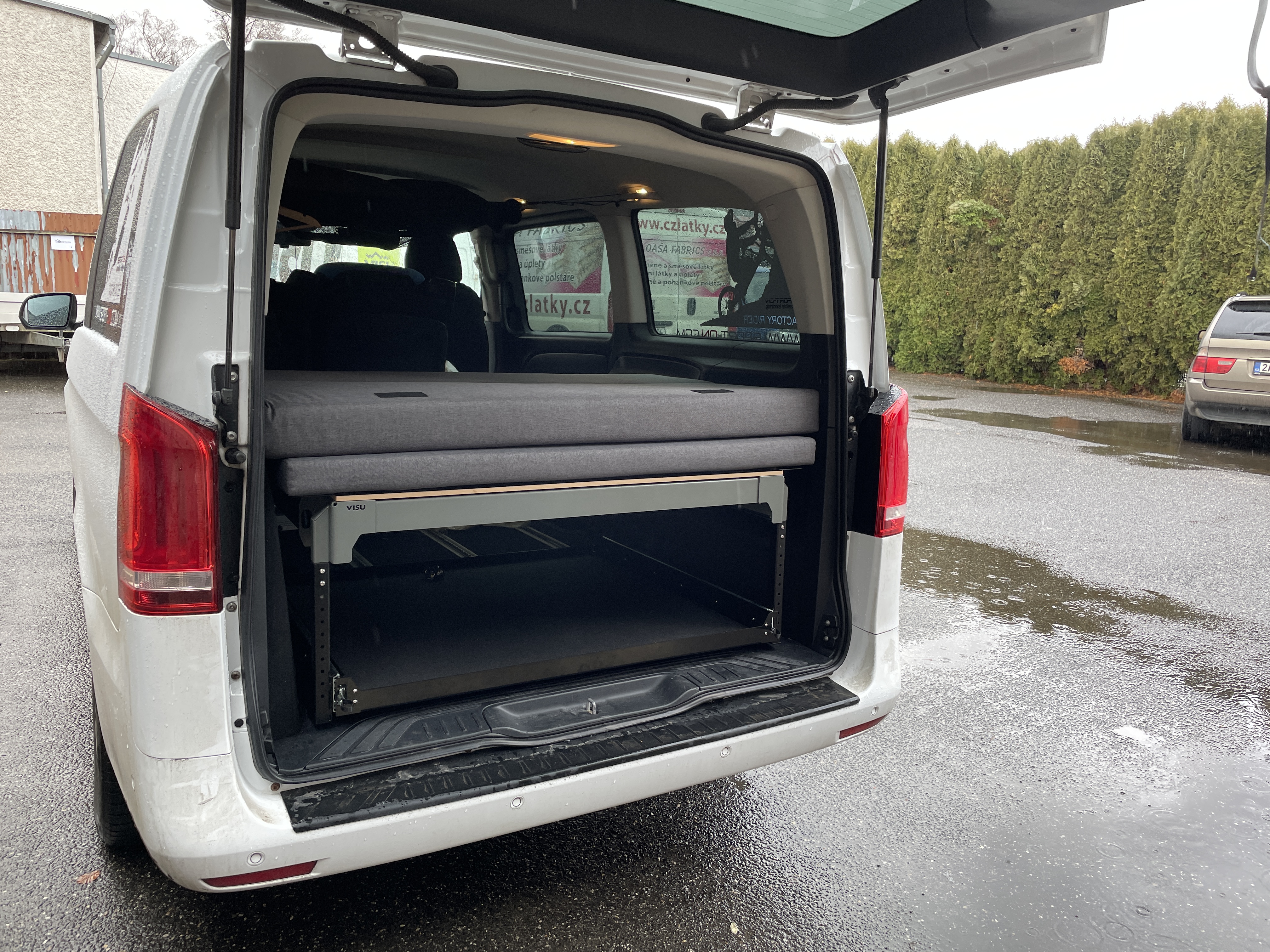

The Visu Baze BZ02 is a compact sleeping module designed primarily for MPVs and mid-sized vans. Thanks to the robust pull-out extensions, unfolding the bed is a matter of seconds, as is easy access to luggage. The design of the module is variable and can be adjusted in height to suit the customer's requirements.
Technical specifications
Frame dimensions
1145×950mm
height: 230-730mm
Bed width
min: 1145 mm
max: 1380 mm
Bed length
1870 mm
Mattresses
Cold foam: 4+8+8cm
mattress cover: 100 000 Martindale
fastening: velcro
maintenance: shampoo by hand only with common cleaning products using soft material cloth or sponge, do not use scrubbing brush etc.
Storage space
840×960mm
height: 120-620mm
Load capacity
pul-out bed: 180 kg
rear drawer: 190 kg
Compatible cars
Toyota Proace (Verso)
2016– (Toyota Proace, Verso K0)
2013–2016 (Toyota Prace G9)
2013–2016 (Toyota Prace G9)
Peugeot Traveller
2016– (Peugeot Traveller K0)
Peugeot Expert
2012 – (Peugeot Expert K0)
2007–2012 (Peugeot Expert G9)
Fiat Scudo
2021– (Fiat Scudo K0)
2007–2016 (Fiat Scudo G9)
2007–2016 (Fiat Scudo G9)
Opel Zafira Life
2019– (Opel Zafira Life K0)
Opel Vivaro
2019– (Opel Vivaro C)
Citroën Spacetourer
2016– (Citroën Spacetourer)
Citroën Jumpy
2016– (Citroën Jumpy K0)
2006–2016 (Citroën Jumpy G9)
ID.Buzz
2022– (VW ID.Buzz Pro,GTX)
Caddy Maxi Life
2020– (VW Caddy Maxi MK5)
Proace Verso City Long
2020– (Toyota Proace Verso City Long)
Peugeot Rifter Long
2018– (Peugeot Rifter Long)
Citroën Berlingo XL
2018– (Citroën Berlingo XL)
Opel Combo Life XL
2019– (Opel Combo Life XL)
